Xero integration

Visualcare integrates with Xero to export client invoices and worker timesheet data directly from VCore. Once the API connection is established, you sync contacts, pay items, and invoice items between the two systems and export on demand.

Linking VCore to Xero

To export any client invoice or worker timesheet data, the API connection between VCore and Xero needs to be established first.

Open accounting software settings

Go to Settings → Data Export → Accounting Software.

Select invoice export

If you want to connect to Xero to invoice clients, select XERO2 from the Invoice Export drop-down and click Save.

Invoice export drop-down showing XERO2 selected

Select timesheet export

If you want to connect to Xero to send worker timesheets, select XERO2 / KeyPay from the Timesheet Export drop-down and click Save.

Timesheet export drop-down showing XERO2 / KeyPay selected

Authorise the connection

Once the drop-downs have been selected, click Authorise Xero. Enter the company name when prompted, then proceed to connect to your Xero database.

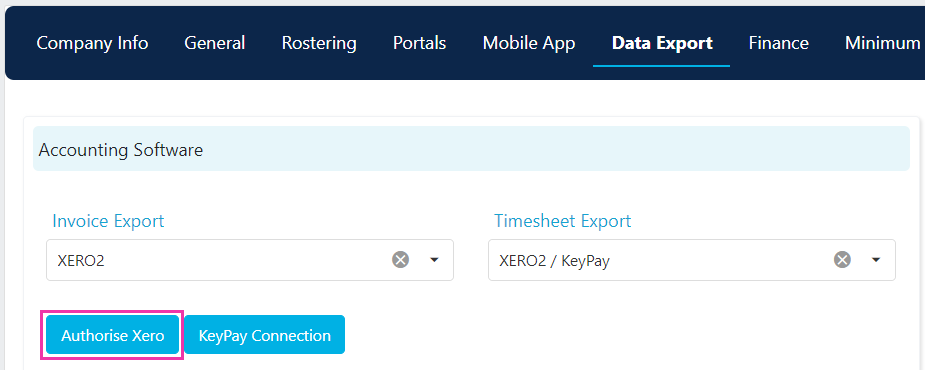

Authorise Xero button in data export settings

Allow access in Xero

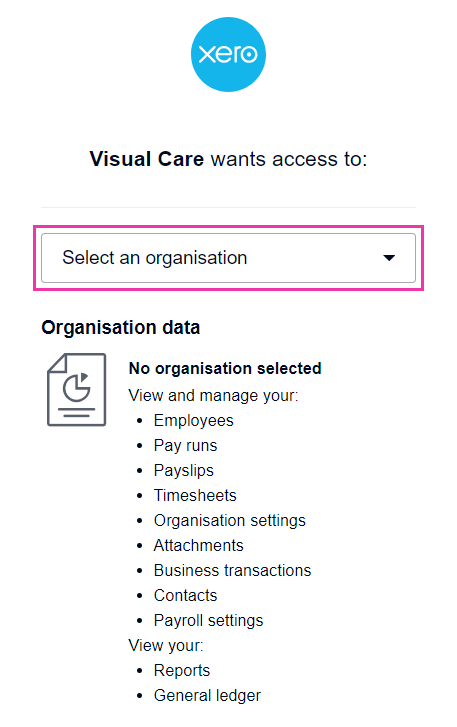

If you’re already logged in to Xero, select the organisation to connect and click Allow Access.

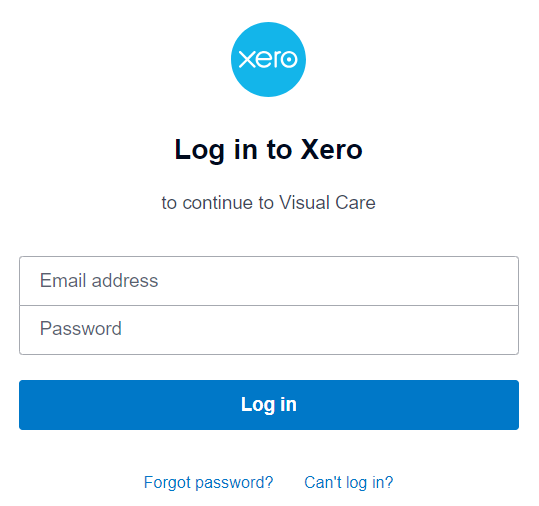

If you’re not logged in to Xero, you’ll need to log in first, then select the organisation and click Allow Access.

The authorisation screen requests access to several Xero scopes including Reports and Ledger. This access is used to retrieve invoice status from Xero back into Visualcare.

Verify the connection

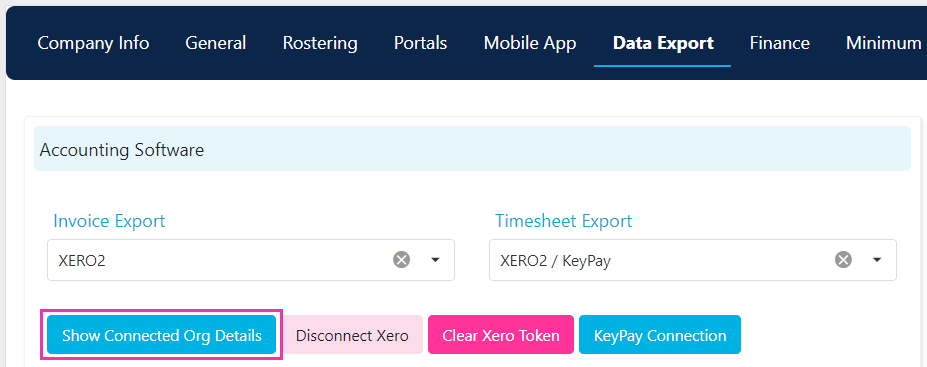

Once connected, you’ll see options to remove the Xero connection or review the connected organisation. Click Show Connected Org Details to check.

This opens the organisation details window:

Sync items from Xero

After the Xero connection has been established, items need to be synced from Xero into VCore. Under Settings → Data Export → XERO, click each of the sync buttons.

These pull the relevant lists of items into drop-downs throughout VCore. For example, Sync Contacts obtains the list of contacts from Xero and populates the following drop-downs in VCore:

VCore field	Xero source
Client profile: Accounting Code	Customer contacts from Xero
Payer profile: Accounting Code	Customer contacts from Xero
Worker profile: Accounting Code	Employees and supplier contacts from Xero

Set up

Payers

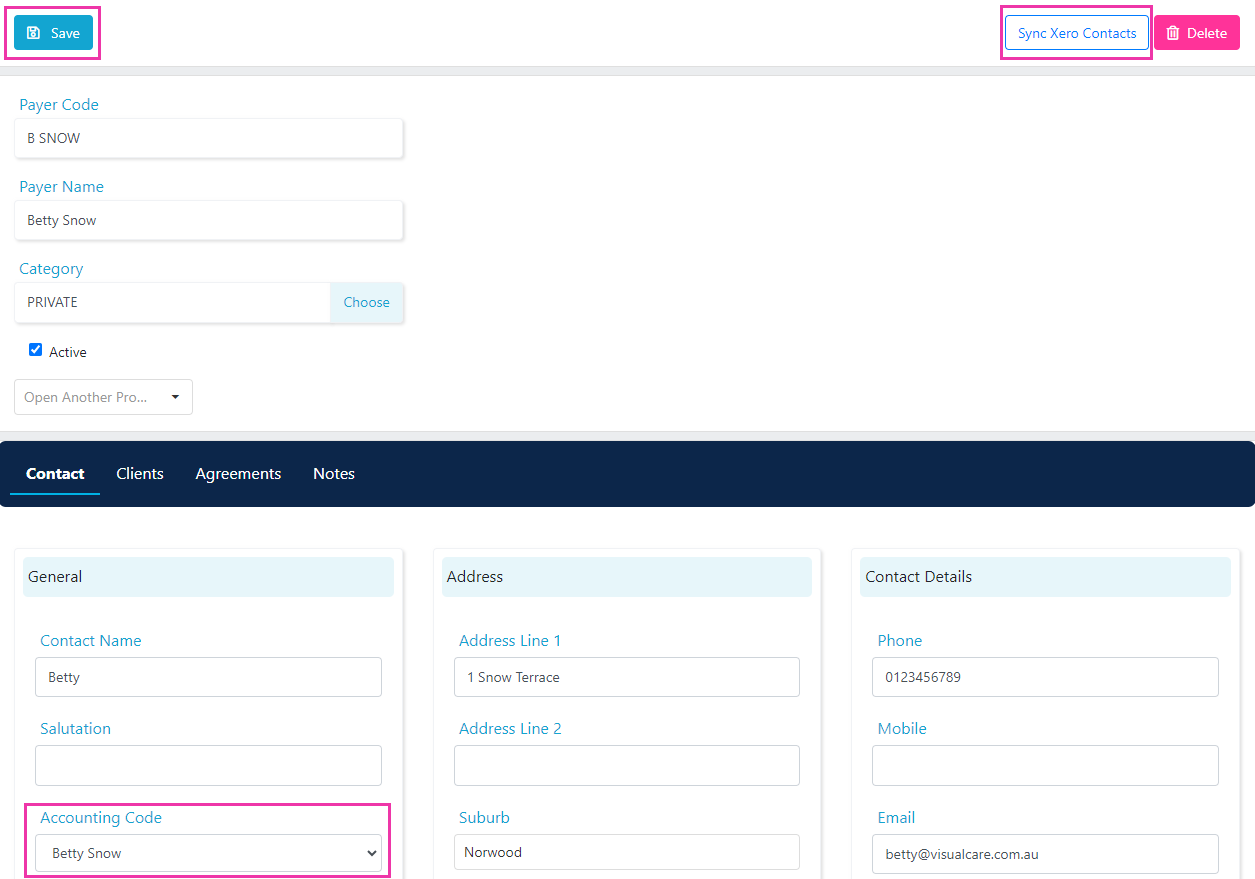

Payers link to a client profile or client agreement so that invoices export to the correct Xero contact. Payer profiles are created in Maintenance → Payers. Once created, select an Accounting Code for the payer from the drop-down list in the Contact section. This drop-down is populated with contacts from Xero. Once selected, click Save in the top-left corner.

If the Xero contact is not listed in the drop-down, make sure the contact is set up in Xero and click the sync contacts button in the top-right corner. If the contact still doesn’t appear, the Xero connection may need to be re-established (see the linking steps above).

Clients

Once payer profiles are created, you set up client profiles for export. There are three places the system looks to export invoices for a client:

Agreement payer
Client profile payer
Client profile accounting code

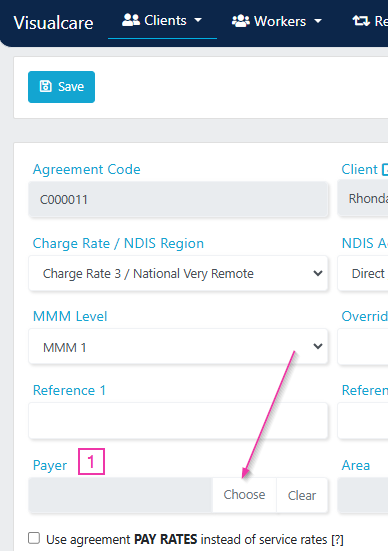

Agreement payer field on client agreement

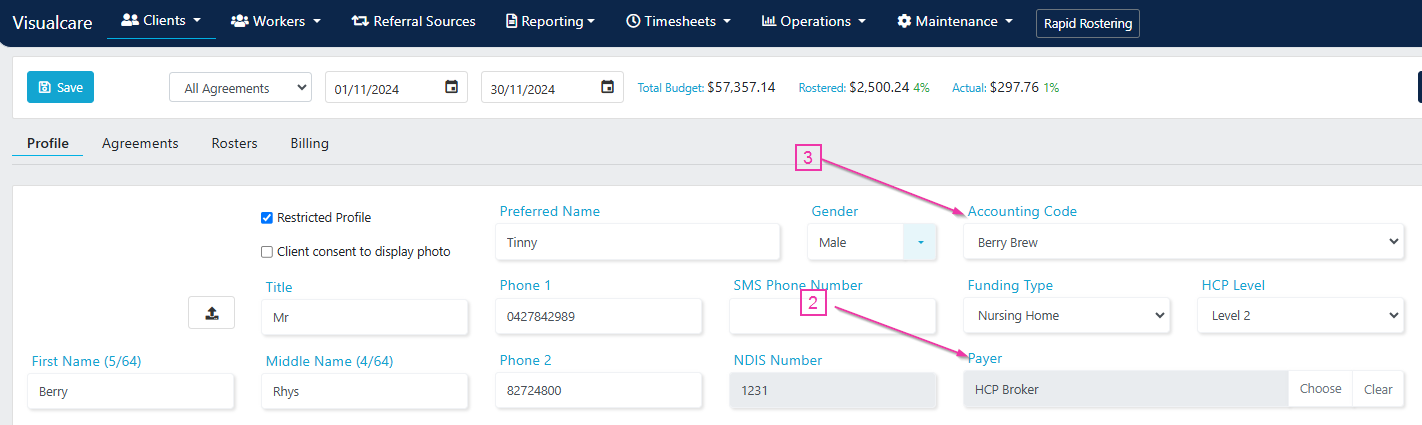

If the agreement Payer field (1) is blank, the system looks for the Payer listed in the client profile (2). If that is also blank, the system exports to the client profile Accounting Code (3). This method allows you to have different Xero contacts invoiced for the same client depending on the payer selected at the agreement level. For example, you may have an NDIS participant who is both plan managed and self managed. For the plan managed shifts, you create a payer profile of the plan manager and select that payer in one agreement. You then have another agreement with the payer blank, and if the client profile payer is also blank, the system looks at the client profile Accounting Code to export for that agreement. Sending a client contact to Xero When creating a client profile in VCore, if that client also needs to be set up as a contact in Xero, click the Send contact to Xero button after saving.

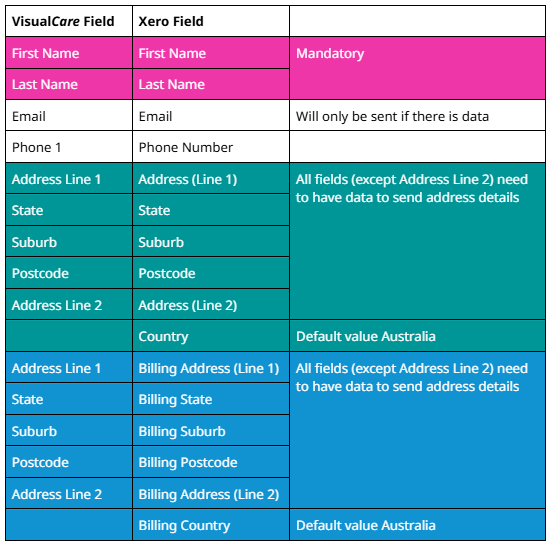

This creates a new customer contact in Xero and sends the following fields:

Fields sent to Xero when creating a client contact

Workers

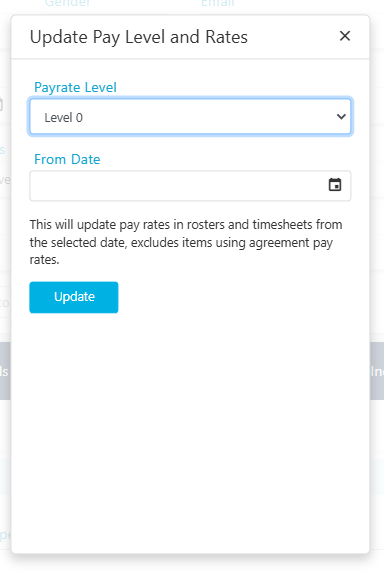

First, make sure the worker has the correct Payrate Level set in Worker Profile → Finance → Worker Details → Update Pay Level and Rates.

For suppliers, the Payrate Level needs to be set to 0 for export. For employees, select the applicable Payrate Level.

At the bottom of the page there is a drop-down for the worker Accounting Code (1). This lists all employees and suppliers you’ve created as employees and contacts in Xero. Select the correct employee or supplier from the drop-down and click Save at the top-left of the page. This tells Visualcare which Xero employee or supplier to export their timesheets to. When creating a worker profile in VCore, if that worker also needs to be set up as an employee in Xero, save the profile, go to the Finance tab, and under Worker Details click the Send to Xero button (2). Then click Sync Contacts from Xero (3) which brings the newly created contact back to the drop-down to select as an Accounting Code.

Setting employees up in Xero first is the recommended approach, since pay templates, tax details, and super are configured there. Send to Xero only creates a snapshot of the Visualcare data.

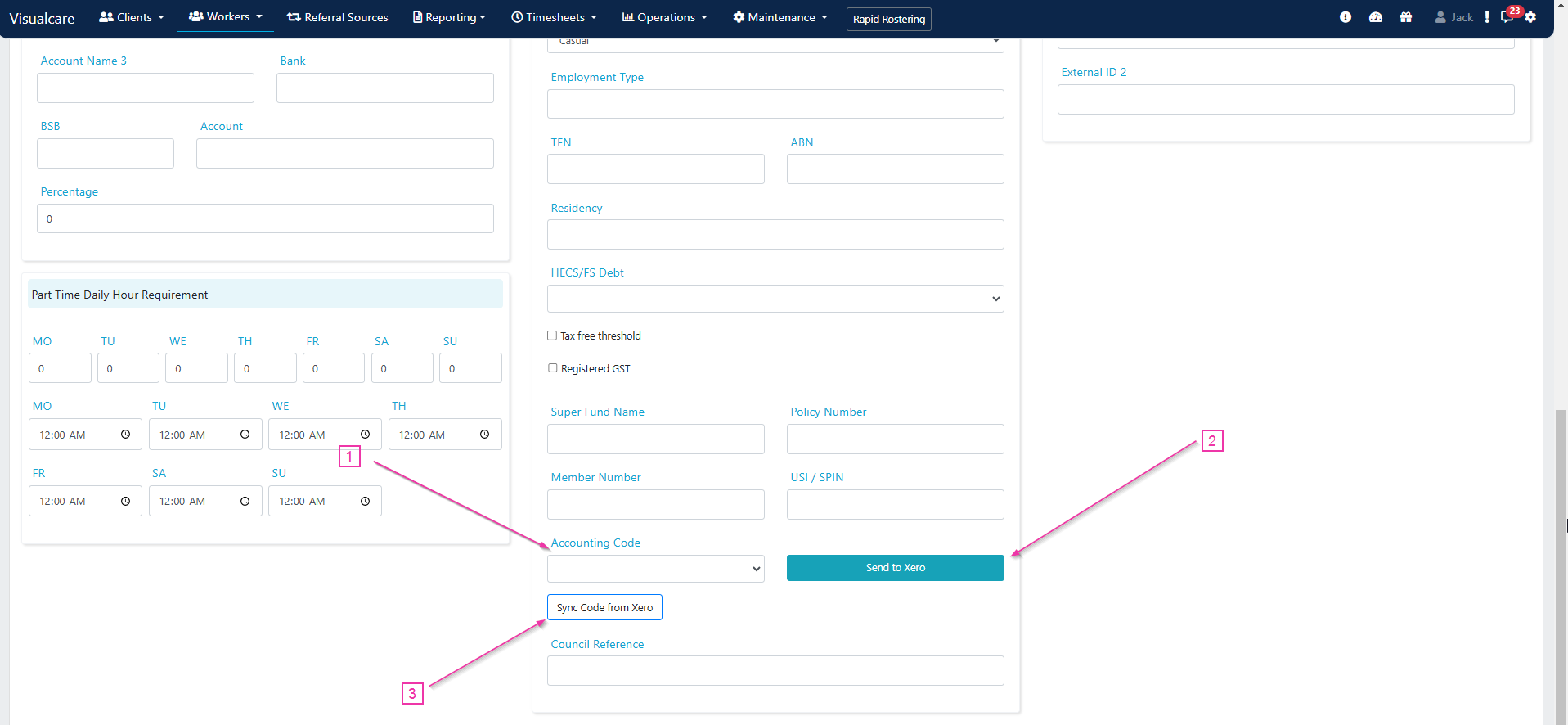

Worker accounting code, send to Xero, and sync contacts buttons

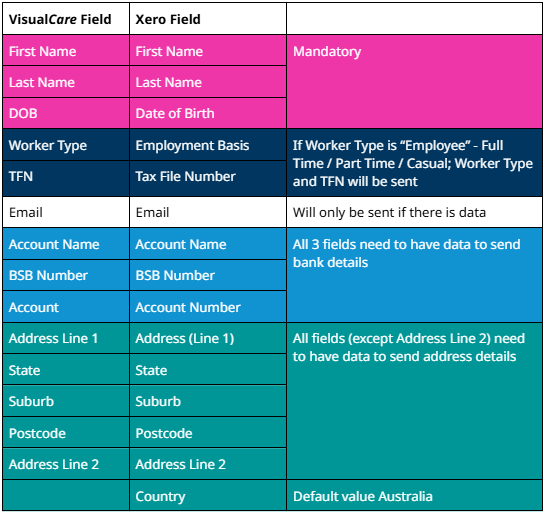

The fields below sync across to Xero when sending worker profile data. Items highlighted in pink are mandatory.

Services (charge)

The charge amount for a service is set in Maintenance → Services. You also need to select an Accounting Code for the service for export. This is the inventory item you’ve created in Xero. If the item you need is not listed, make sure it is set up in Xero and click Sync Xero Invoice Items in the top-right corner to bring them across. Once the Accounting Code and all other relevant information is updated, click Save in the top-left corner.

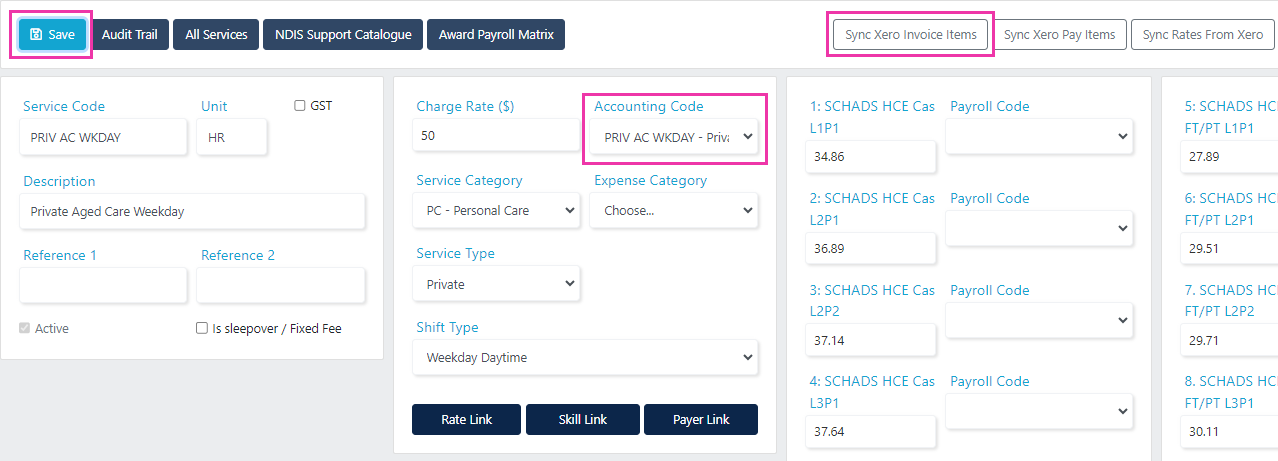

Service accounting code and sync invoice items

Services (pay)

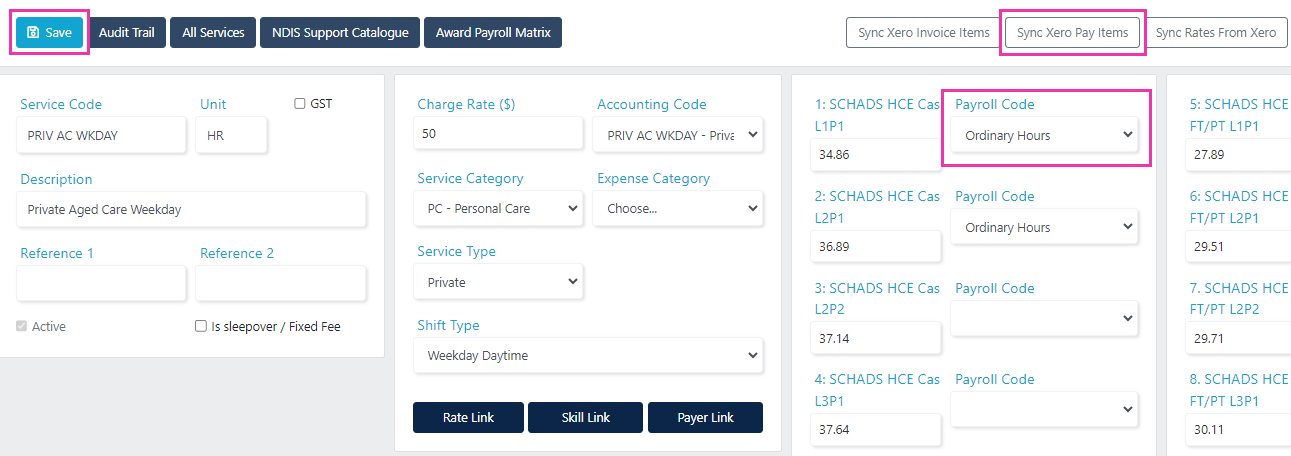

For paying the worker, Visualcare matches the service and the worker payrate level to find the payroll code to export. Payroll codes need to be selected for each service and payrate level when applicable for a successful export. To select a Payroll Code, go to Maintenance → Services, select a service from the bottom table, and choose the Payroll Code from the drop-down for each pay level. Click Save in the top-left corner. If the pay item you need is not listed, make sure it is set up in Xero and click Sync Xero Pay Items in the top-right corner.

The pay rate amount listed is not exported for employee payroll. Only the payroll code is sent to Xero. The amount is sent for supplier payments, however.

For more information on configuring settings for Xero, see Data export settings. For information on how to export to Xero, see Exporting payroll data.

Tracking categories

Xero tracking categories let you tag invoice and payroll entries with an additional dimension, such as region, funding type, or cost centre, so you can report on them separately in Xero. Visualcare maps a field from its data to a tracking category, so every exported entry carries the correct tracking value. There are two category slots:

Category	Purpose
Category 1	Invoice tracking
Category 2	Payroll tracking (requires enablement by Visualcare support)

The value in Visualcare must exactly match the tracking category value in Xero. A mismatch causes a “tracking ID failed” error on export.

Configuring tracking categories

Open tracking settings

Go to Settings → Data Export and tick the Tracking checkbox. Fields for Category Name and Link to Field appear.

Enter the category name

In Category Name, type the exact name of the tracking category as it appears in Xero, for example Region. Check in Xero under Settings → Accounting → Tracking Categories to confirm the exact name before entering it here.

Select the linked field

Under Link to Field, choose the Visualcare field whose values populate the tracking category. The available fields differ between Category 1 and Category 2:

Field	Category 1 (invoices)	Category 2 (payroll)
Agreement Reference 1	Yes	Yes
Agreement Type	Yes	Yes
Area	Yes	Yes
Client Division	No	Yes
Client Funding Type	Yes	No
Client Name	No	Yes
Client Type	Yes	Yes
Service Reference 1	Yes	Yes
Service Type	Yes	Yes
Worker Division Description	No	Yes
Worker Name	Yes	Yes

The values in the Visualcare field you select must match the tracking category options in Xero exactly. For example, if your Xero “Region” category has the options North, South, East, and West, your Visualcare Area field values need to use those same names.

Limitations

Tracking invoices by client name Xero’s tracking category setup links to a Visualcare field rather than the client record itself, so there’s no direct way to track invoices by participant name using Category 1. As a workaround, you can enter the client name manually in Agreement Reference 1 and link that field to Category 1. This is a manual step per agreement and doesn’t scale well for large client lists. Location roster shifts Location roster shifts have no associated agreement, so fields like Agreement Reference 1 have no value for those shifts. Linking a tracking category to an agreement-based field produces export errors for location roster shifts. Tracking by Area (the worker’s area) is a more reliable option for providers using location rosters, though this maps to the house or location rather than individual participants. Payroll tracking (Category 2) Category 2 for payroll tracking is not active by default. Contact support@visualcare.com.au to have it enabled.

When payroll tracking is enabled, Visualcare amalgamates hours to the pay item before applying the tracking value. If a worker has hours under multiple funding types on the same pay item, only the tracking value from the first entry is applied. To track payroll by funding type accurately, separate pay items per funding type are needed.

Common errors

When exporting data to Xero, the system may display configuration errors that are causing the export to fail. Below is a list of common errors with solutions. If the solution doesn’t resolve your issue or the error is not listed, contact support@visualcare.com.au for help.

Invoicing errors

Export summary errors

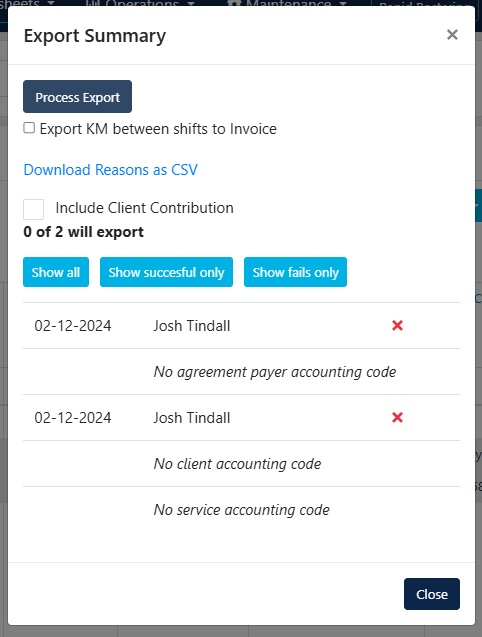

These errors appear on the export summary pop-up if the setup is incorrect.

Error	How to resolve

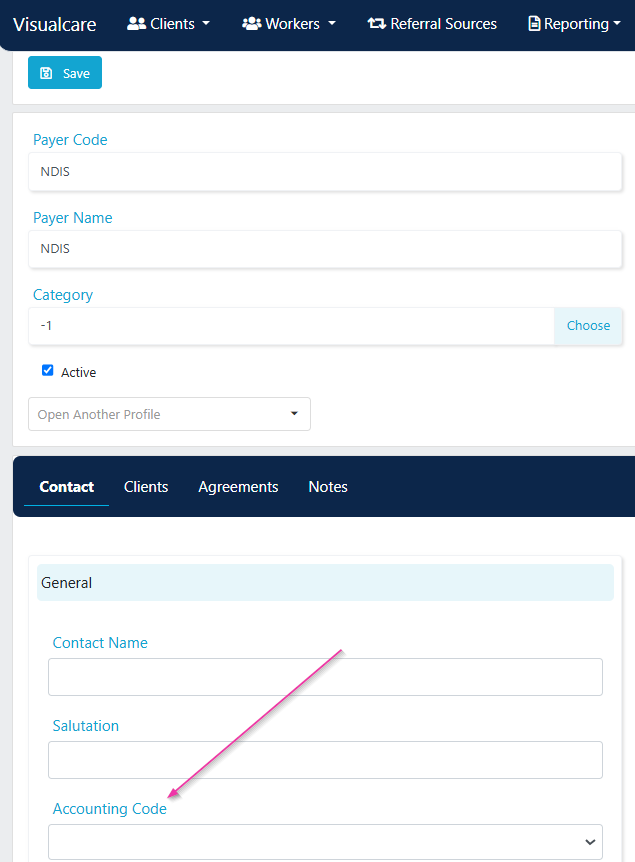

No agreement payer accounting code	Go to Maintenance → Payers, search for the payer missing an accounting code, click on it, and select an Accounting Code from the drop-down. If the contact is not listed, click sync contacts in the top-right.
No client payer accounting code	Same resolution as above.

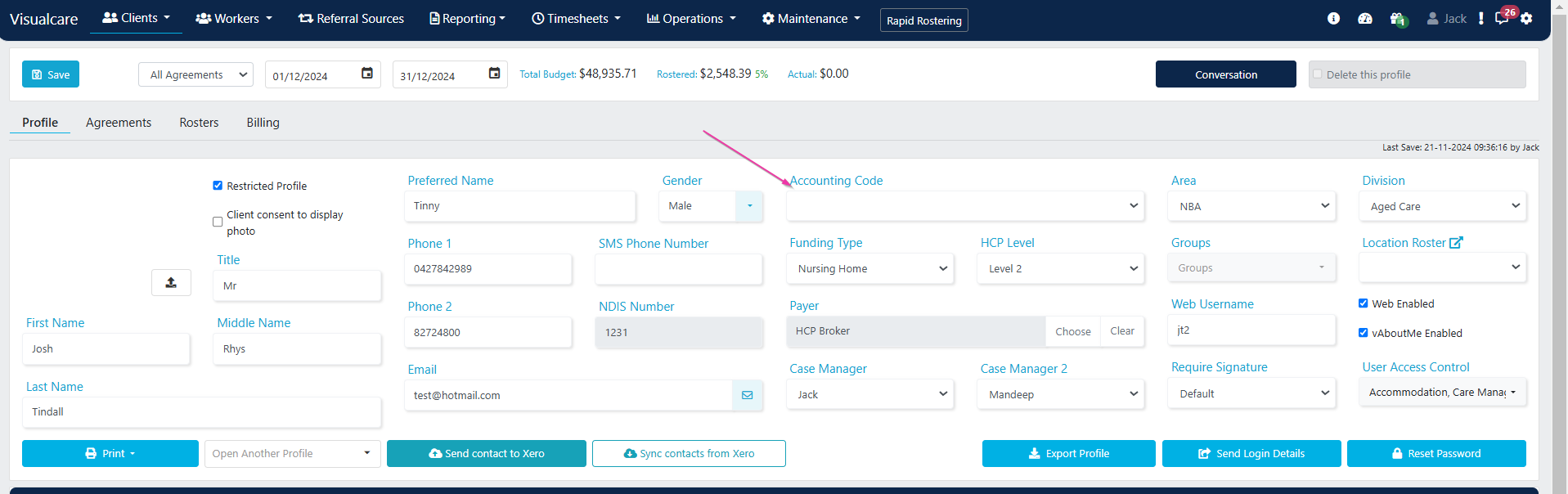

Client missing accounting code	Go to the client profile and select a code in the Accounting Code drop-down or select a Payer if applicable.

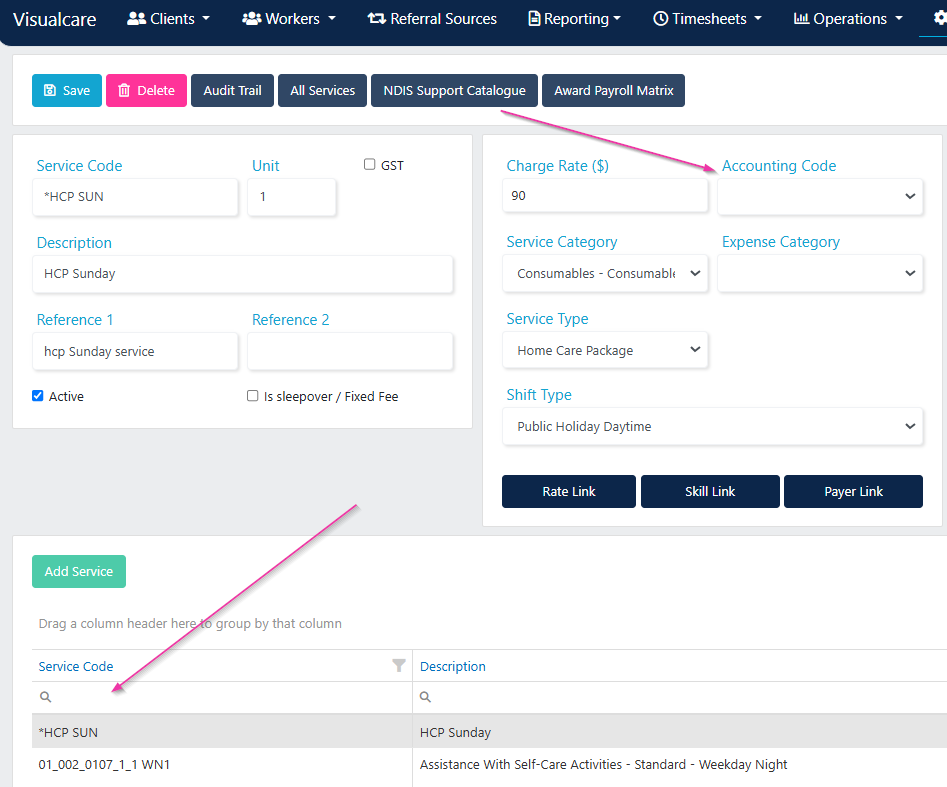

Service missing accounting code	Go to Maintenance → Services, search for the service missing an Accounting Code, click on it, and select the code from the drop-down. If the code is not listed, click Sync Xero Invoice Items in the top-right.

Export status errors

If you get an error on the export status page before clicking Start Import, it means the payer, client, or service does not have an accounting code selected. See the resolutions above.

Error	How to resolve
Accounting code missing in Visualcare - try syncing again	Go to Settings → Data Export → XERO and click all the sync buttons, then try the export again.
Missing code in Xero (service-related)	Make sure the inventory item is set up and active in Xero.
Missing code in Xero (kilometre-related)	Go to Settings → Finance → Kilometre and make sure the codes are entered. Also check the client agreement to see if override has been ticked. If so, make sure a code is selected or untick override if not applicable.

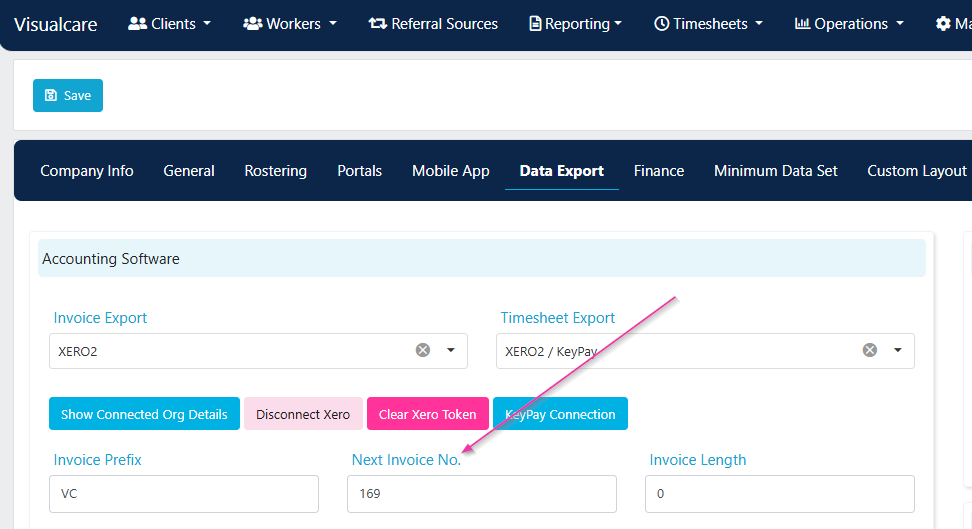

Error: To update fields on a paid invoice line item	Go to Settings → Data Export → Accounting Software and update the Next Invoice Number. This occurs when the next invoice number has already been created in Xero.
Invoice not of valid status for modification	Same resolution as above.

Payroll errors

Export summary errors

Error	How to resolve
No support worker accounting code	Go to Worker Profile → Finance and select an Accounting Code in the worker profile. See the Workers set up section above.
No service payroll code	Go to Maintenance → Services, search for the service, click on it, and select a payroll code for the level you were attempting to export. See the Services (pay) set up section above.

Export status errors

Error	How to resolve
FAIL undefined or Array no session	Go to Settings → Data Export and click the pink Clear Xero Token. Navigate back to the same page and click Authorise Xero. Log into your Xero to re-establish the connection. Sync pay items and try the export again.
Employee doesn’t have a pay run calendar	Make sure the worker has a pay calendar set in Xero.
FAIL! Null	This occurs when too many first aid allowances are exported. Select fewer items for export.
Employee name not found in Xero	Go to the worker profile and make sure a worker accounting code is selected. This error is also caused by an apostrophe in the employee name on Xero preventing the data from being read. Remove the apostrophe from the Xero contact, resync, reselect the worker accounting code, and try the export again.
FAIL: Earnings Rate does not exist or is not valid for timesheets	Check the pay item on Xero. Common causes: (1) the Types of Units for the pay item is not set to Hours, (2) the Xero pay item is not set up or active, (3) exporting a payroll code not in the pay template for the employee, (4) the pay item is set as an allowance, or (5) an apostrophe in a pay item name. Make sure the item is correctly set up as OTE or Reimbursement with Type of Units as Hours and is active. If using pay templates, make sure it has been added to the template. Remove any apostrophes in pay items, resync, and try the export again.
TrackingItemID is required for each timesheet line	This occurs when timesheet tracking is enabled in Xero but not set up in Visualcare. Either disable timesheet tracking on Xero or contact support@visualcare.com.au to set up timesheet tracking. Have your Xero category name and options ready along with the Visualcare field you’d like to map to.

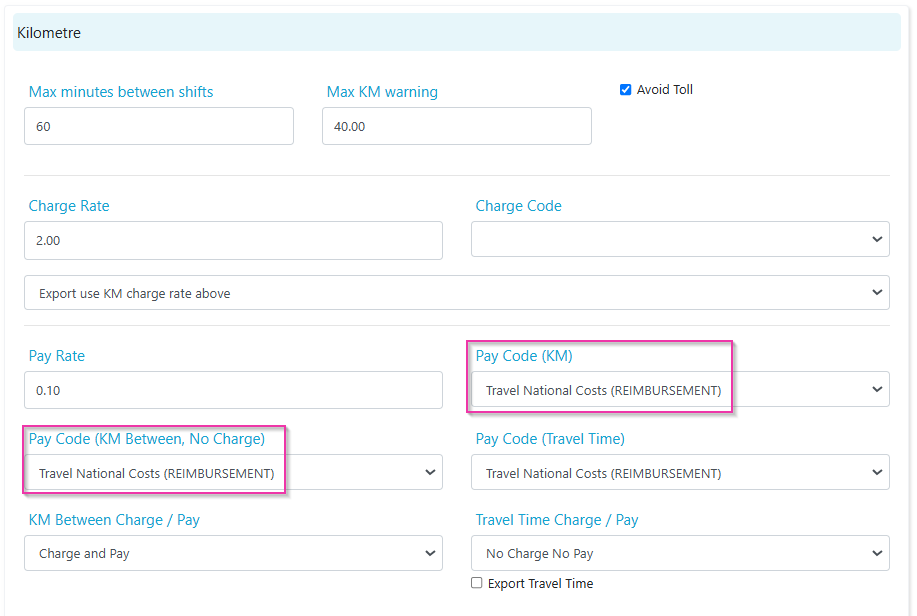

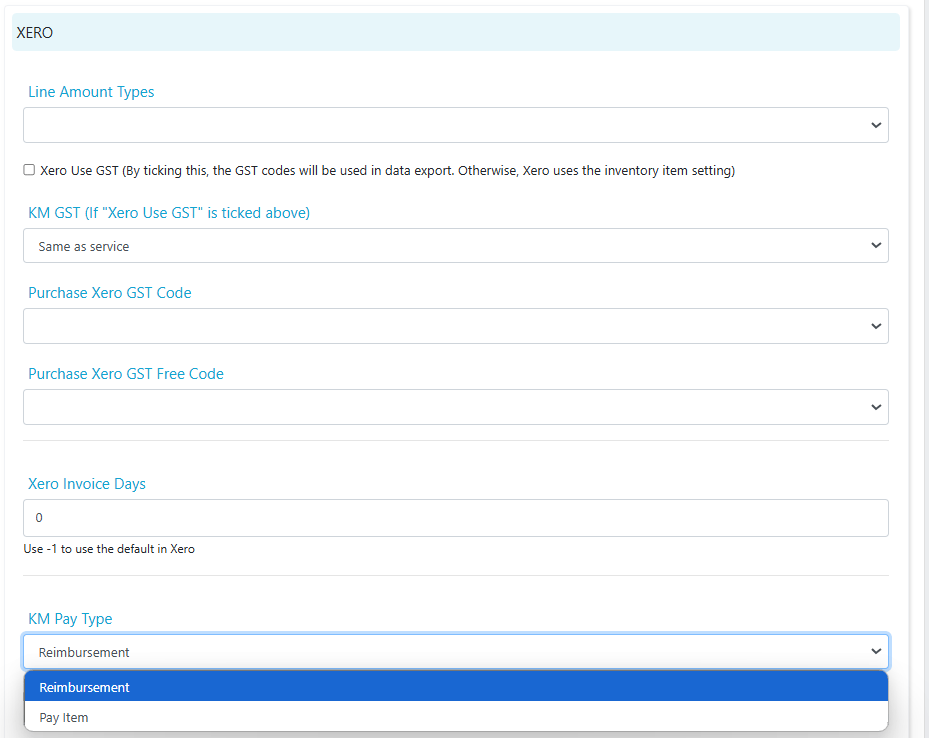

FAIL A validation exception occurred	This is due to a mismatch with the kilometre pay type and pay codes. Go to Settings → Finance → Kilometre and check how your KM pay codes are set up in Xero. Then go to Settings → Data Export → XERO → KM Pay Type and select pay item if the codes are Ordinary Time Earnings, or reimbursement if they’re reimbursements.
No pay runs found	This occurs when you export kilometres without a matching pay run. Create a pay run in Xero for the time period and try the KM export again.
No payslips found on payrun	This occurs when you attempt to export kilometres or expenses but the timesheets have not been approved in Xero. Approve timesheets in Xero and try the export again.
Provided period doesn’t correspond with a pay period	Check the pay calendar set up on Xero for the employee.

Running into issues?

See Integration troubleshooting for additional common errors and fixes.
